Lattice type Goliath EOT Cranes


Capacity:
Single Girder up to 20 Ton/Double Girder Crane Up to 50 Ton
Span: Up to 30 mtrs.
Long travel speed: Up to 20 mtrs/mm
Cross Travel Speed: Up to 15 mtrs/min.

  • Used for outdoor application construction area.
  • Travels on rails installed on ground surface.
  • Cost effective economical solution.
  • Used for Ship yards. Construction area
  • Need of concrete foundation to support rail

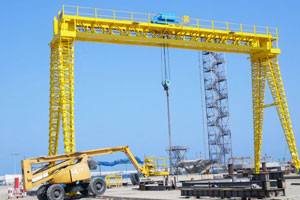

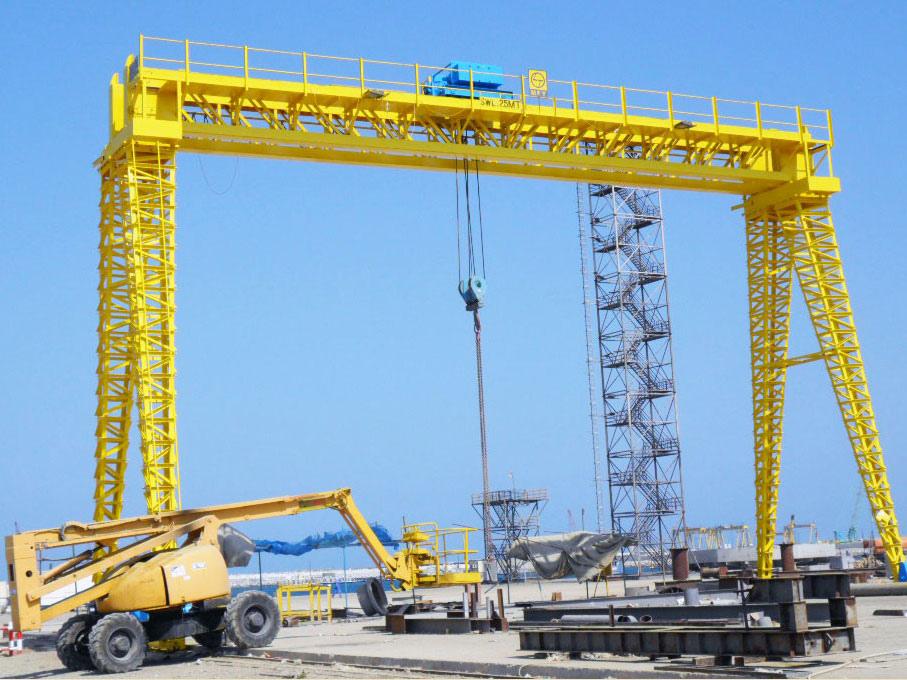

Lattice goliath Crane is similar to the bridge Crane except that it runs on a run way at the floor level. The Lattice type Bridge is supported by a pair of Lattice type steel legs which are carried by a pair of end track along with the floor level runway.

R-Cranes Engineers, design and manufacture Gantry/Goliath Cranes in accordance with IS 3177 considering adequate factor of safety with respect to appropriate duty classifications. The structural parts of the cranes are designed in accordance with IS 807 norms. The product range includes Double Girder Cranes to meet customers’ specific requirements to handle the material in a most efficient manner



Design

R- Cranes, Goliath Electric Floor Travelling Cranes are designed & manufactured accordance with IS 807 &. IS 3177. The Mechanical part of the Crane is manufactured Accordance with IS 3177 code of practice of design, manufacturing, erection & testing of EOT Cranes. The Structural part of the crane is manufactured accordance with IS 807 code of practice & Design of EOT Cranes. In the design of components, an adequate factor of safety as per relevant code is allowed Impact, Fatigue, Wear & Stress concentration factor are also taken in consideration whenever applicable. All drives are designed to give sound and efficient performance.

Surface Treatment

  • All structural parts of crane are applied with send blasting treatment, single coat of primer and two coats of synthetic enamel paints. This is for Special outdoor Application.
  • Epoxy paint and P.U. paints are on request.


Bridge Girder

The bridge girder is fabricated from RSJ / Box type construction in the manufacturing. The maximum deflection of the bridge girder is limited to span / 1000 of the live loads. Bridge girder designed to sustain stress creating due to vertical & lateral forces with impact.

End Carriages / End Trucks

  • End carriages are fabricated from rolled steel section / plate with adequate diaphragms & stiffeners to give a rigid construction. The girder with the gusset plates are set on end carriages joined with bolt in rimmed holes, rubber buffer are provided on both the side of end carriages which absorbs the jerks.
  • Twin drive arrangements will be provided for L.T. motions, central drive arrangement also available on request.


Motors & Brakes

  • The motors used are specially crane duty suitable for frequent starting, reversing and braking in accordance with IS 325.
  • All trolleys are drive motors have suitable AC / DC / brakes as std. equipments with smooth running properties.


Hoisting Machinery

The hoisting machinery / crab is designed with IS 3938 in modular construction which simplifies repair & maintenance consist of heavy duty industries, R-cranes type std. wire rope trolley.

Controls

  • The crane is controlled from pendent push button station is suspended from one end of bridge at a suitable height from the floor level with stepped down voltage of 110v, 24v.
  • Dust proof powder coated sheet – metal housing consists of contactors overload relays fuses, transformers etc.
  • Emergency stop button in all cranes to shutting of the power to the main connectors


Optional Features

Following features shall be supplied on request

  • Micro speed arrangement through frequency meters /variable frequency drives
  • Cable festooned system or shrouded bus bar system.
  • Warning horn.
  • Bridge lights
  • Cabin operated through master controller
  • Remote Control
